Brocade 57-1000351-01 128G FC QSFP28 Transceiver 4x32G SWL 100m XBR-000275 Optical module
Brocade 128Gb/s SW FC SFP transceiver Specifications
The Brocade® 4×32Gb/s Short Wavelength (SWL) Quad Small Form-Factor Pluggable (QSFP+) transceivers, part of the Brocade family of optical transceivers, are optimized for Brocade switches. These optical transceivers provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.
The Brocade 4×32Gb/s SWL QSFP+ modules are hot-swappable, lowvoltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over multimode optical fiber at signaling rates up to 4×28.05Gb/s. They comply with the 128GFC Fibre Channel standard (FCPI-6P) and QSFP MSA mechanical specification (SFF-8661).
Product highlights include the following:
• 850-nm multimode VCSEL transmitter
• Diagnostic features per SFF-8472 (Diagnostic Monitoring Interface for Optical Transceivers), providing real-time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
• Industry-standard MPO 1×12 ribbon cable connector
• 100m link length on OM4, OM4+, and OM5 fiber; 70m link length on OM3 fiber
(these distances assume 1.0-dBm connector loss)
• Support for breakout to 4x32Gb/s SWL connectivity
• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe
• Compliance with the Restriction on Hazardous Substances (RoHS) directive
Highlights
• Provides high system reliability through a rigorous qualification and certification process.
• Eliminates issues related to transceiver incompatibility, reducing downtime and support costs.
• Provides support for 32Gb/s and 16Gb/s inter-switch links (ISLs), inter-chassis links (ICLs), and device connectivity.
Caution
• Do not look through the optical ports because it is a potential eye hazard.
• The SFP is an ESD sensitivity Class 2 device. It should be handled accordingly.
Parameters for the 4x32G 128Gb/s SW FC SFP Transceiver Module:
| Performance | Fibre Channel: • 112.2Gb/s (4×28.05Gb/s) line speed, full duplex • 56.1Gb/s (4x14.025Gb/s) line speed, full duplex |
| Media | Hot-pluggable, industry-standard QSFP28, MPO 1×12 ribbon cable connector, Short Wavelength (SWL) |
| Operating Parameters | Transmit (Tx): • Wavelength: 840 nm to 860 nm
• Spectral width: 0.60 nm
• Average power: –8.5 dBm to +2.4 dBm per channel
• Optical return loss: –12 dB max
• OMA: −6.5 dBm to +3.0 dBm per channel
Receive (Rx):
• Wavelength: 840 nm to 860 nm
• Average power: −10.4 dBm to 2.4 dBm per channel
• Optical return loss: −12 dB min
• SRS OMA: –4.7 dBm max per channel
|
| Operating Distances | 100m on OM4, OM4+, and OM5 multimode fiber; 70m on OM3 multimode fiber. These distances assume 1.0-dBm connector loss. |
| Size | Width: 18.35 mm (0.72 in.) Height: 12.9 mm (0.51 in.) Depth: 71.00 mm (2.82 in.) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Power Dissipation | 2.5W |

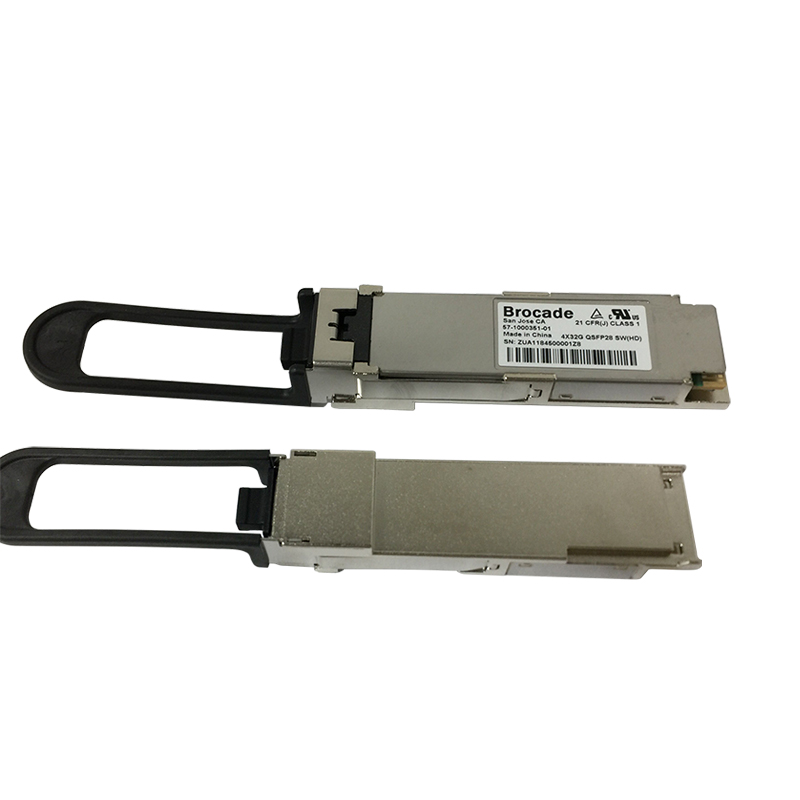

Photo for Brocade 4x32G 128Gb/s SW FC SFP Transceiver
FAQ
Q1. Except for this Brocade 4x32G 128Gb/s SW FC SFP Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate | Description | Manufacturing Part Number | Brocade Ordering Part Number |
| 4x32G FC QSFP+ | SWL | 57-1000351-01 | XBR-000275 (1-pack) |
| 4x32G FC QSFP+ | SWL | 57-1000490-01 | XBR-000475 (1-pack) |
| 4x32G FC QSFP+ | 2 km | 57-1000480-01 | XBR-000285 (1-pack) |
| 64G FC SFP+ | SWL | 57-1000495-01 | XBR-000462 (1-pack) XBR-000463 (8-pack) |
| 64G FC SFP+ | LWL - 10 km | 57-1000496-01 | XBR-000468 (1-pack) XBR-000469 (8-pack) |
| 64G FC SFP+ | ELWL - 25 km | 57-1000497-01 | XBR-000466 (1-pack) |
| 32G FC SFP+ | SWL | 57-1000333-01 | XBR-000212 (1-pack) XBR-000213 (8-pack) |
| 32G FC SFP+ | SWL | 57-1000485-01 | XBR-000412 (1-pack) XBR-000413 (8-pack) |
| 32G FC SFP+ | LWL - 10 km | 57-1000332-01 | XBR-000238 (1-pack) XBR-000239 (8-pack) |
| 32G FC SFP+ | LWL - 10 km | 57-1000486-01 | XBR-000438 (1-pack) XBR-000439 (8-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000355-01 | XBR-000278 (1-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000494-01 | XBR-000478 (1-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000498-01 | XBR-000479 (1-pack) |
| 16G FC SFP+ | SWL | 57-0000088-01 | XBR-000192 (1-pack) XBR-000193 (8-pack) |
| 16G FC SFP+ | SWL | 57-1000487-01 | XBR-000492 (1-pack) XBR-000493 (8-pack) |
| 16G FC SFP+ | LWL - 10 km | 57-0000089-01 | XBR-000198 (1-pack) XBR-000199 (8-pack) |
| 16G FC SFP+ | LWL - 10 km | 57-1000488-01 | XBR-000498 (1-pack) XBR-000499 (8-pack) |
| 16G FC SFP+ | ELWL - 25 km | 57-1000262-01 | XBR-000258 (1-pack) |
| 16G FC SFP+ | ELWL - 25 km | 57-1000489-01 | XBR-000458 (1-pack) |
| 8G FC SFP+ | SWL | 57-1000117-01 | XBR-000163 (1-pack) XBR-000164 (8-pack) |
| 8G FC SFP+ | LWL - 10 km | 57-1000027-02 | XBR-000153 (1-pack) XBR-000172 (8-pack) |
| 8G FC SFP+ | ELWL - 25 km | 57-0000080-01 | XBR-000174 (1-pack) |
Q2:Is this genuine Brocade Original 128G ELWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
